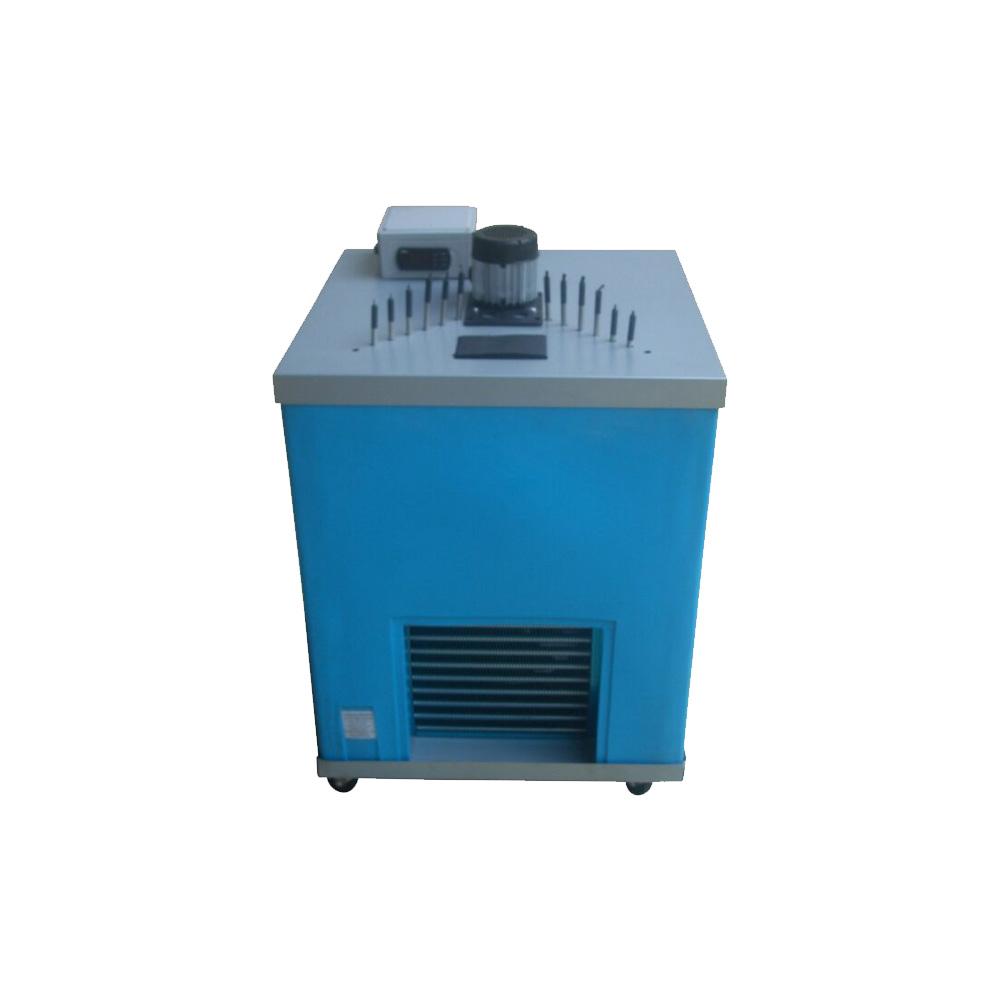

Glycol beer cooler U21
Description
High performance agitator which is easily serviced or replaced without disconnecting beer lines.
Thermostat and all components accessible from outside the water bath. No need to ever remove chiller lid or disconnect beer lines for field service.
Beer and coolant lines are grouped for easy installation and maximum cooling effects.
Many connection options available
High performance refrigeration package is tuned for tropical climates so your beer is always cold.
Tough, corrosion proof insulated unibody construction. Fewer parts. Longer service.
Specifications
| Model | Glycol |
| Dimensions | 560 x 560 x 900 mm |
| Empty Weight | 52 kg |
| Operational Weight | 110 kg |
| Refrigerant | R134a |
| Temperature control | Mechanical pre-set |
| Beer coil (1-6 coils) | AISI-316 8 mm |
| Compressor | 3/7” Hp |
| Cooling capacity @ -10 SST | 720 watts |
| Pull down time @ 30C ambient and water bath | 3 hrs |
| Agitator / pump motor (NGR) | 73 watts |
| Condensor fan motor | 25 watts |
| Voltage | 220-230V / 50 HZ / 1 PH |
| Run current | 3.5 amps |
| Castors included | 2” rubber |
