Details

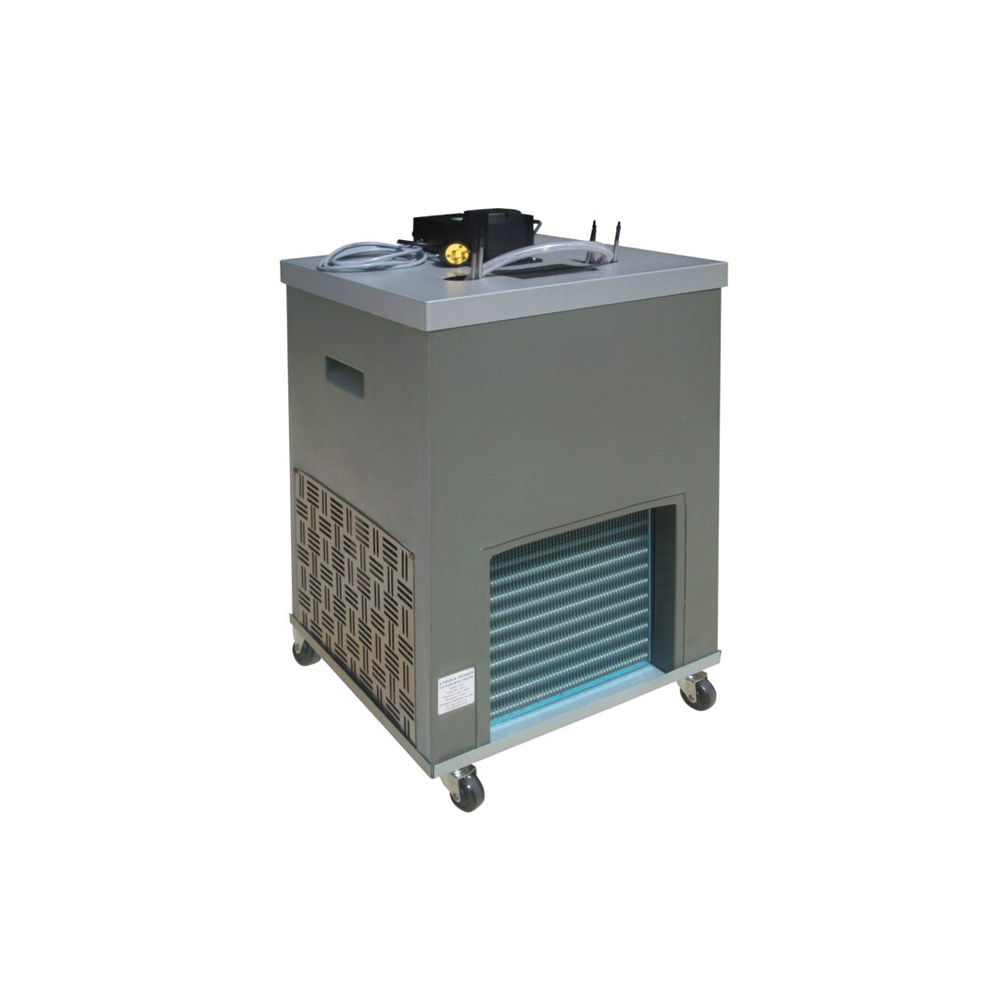

Ice bank beer cooler 14 kg
Description
High performance agitator which is easily accessible from outside the serviced or replaced remove chiller lid or disconnect beer lines.beer lines for field service.
Thermostat and all components water bath. No need to ever without disconnecting
Beer and coolant lines are grouped for easy Many connection installation and maximum cooling effects. options available
High performance refrigeration package is tuned for tropical climates so your beer is always cold.
Tough, corrosion proof insulated unibody construction. Fewer parts. Longer service.
Specifications
| Model | U14 |
| Dimensions | 450 x 450 x 860 mm |
| Empty Weight | 40 kg |
| Operational Weight | 68 kg |
| Ice bank capacity | 14 kg |
| Refrigerant | R134a |
| Ice bank control | Mechanical pre-set |
| Beer coil (1-3 coils) | AISI-316 8 mm |
| Compressor | 3/8” Hp |
| Cooling capacity @ -10 SST | 720 watts |
| Pull down time @ 30C ambient and water bath | 3 hrs, 40 minutes |
| Agitator / pump motor (MID-8) | 55 watts |
| Condensor fan motor | 25 watts |
| Voltage | 220-230V / 50 HZ / 1 PH |
| Run current | 3.5 amps |
| Castors included | 2” rubber |
