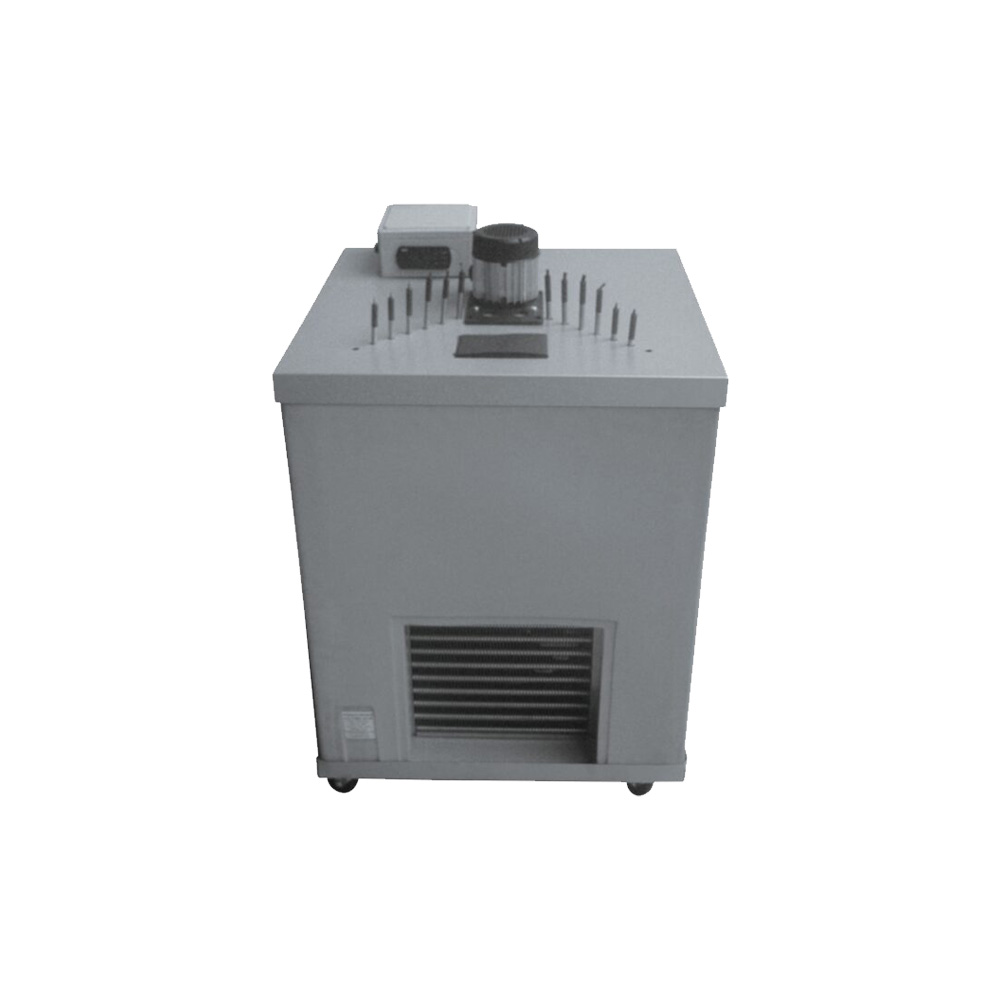

Ice bank beer cooler 21 kg
Description
High performance agitator which is easily accessible from outside the
serviced or replaced remove chiller lid or disconnect beer lines.for field
service.
Thermostat and all components water bath. No need to ever without
disconnecting beer lines
Beer and coolant lines are grouped for easy Many connection installation
and maximum cooling effects. options available
High performance refrigeration package is tuned for tropical climates so
your beer is always cold.
Tough, corrosion proof insulated unibody construction.Fewer parts. Longer
service.
Specifications
| Model | U21 |
| Dimensions | 560 x 560 x 880 mm |
| Free height required | 900 mm |
| Empty Weight | 52 kg |
| Operational Weight | 110 kg |
| Ice bank capacity | 21 kg |
| Refrigerant | R134a |
| Ice bank control | Mechanical pre-set |
| Beer coil (1-6 coils) | AISI-316 8 mm |
| Compressor | 3/7” Hp |
| Cooling capacity @ -10 SST | 720 watts |
| Pull down time @ 30C ambient and water bath | 5-6 hrs |
| Agitator / pump motor (ST-B) | 73 watts |
| Condensor fan motor | 25 watts |
| Voltage | 220-230V / 50 HZ / 1 PH |
| Run current | 3.5 amps |
| Castors included | 2” rubber |
